◆ Includes MZDB0746C, MZDB0746C-D, MZDB0746C-PL

◆ High-quality effect of coaxial illumination, contrast, definition and depth of field are outstanding

◆ In addition to equipped with coaxial illumination, also can equipped with LED ring illuminator

◆ Specially used for inspect & measure bottom of small deep hole, defect of LCD, plane pressworks and other plane objects with high reflectivity & low reflectivity simultaneously.


MZDB0746C	MZDB0746C

Zoom range	0.7X~4.6X
Zoom ratio	6.6:1
WD	73mm
Illumination	Adjustable high brightness , long life LED coaxial illumination; LED ring illumination

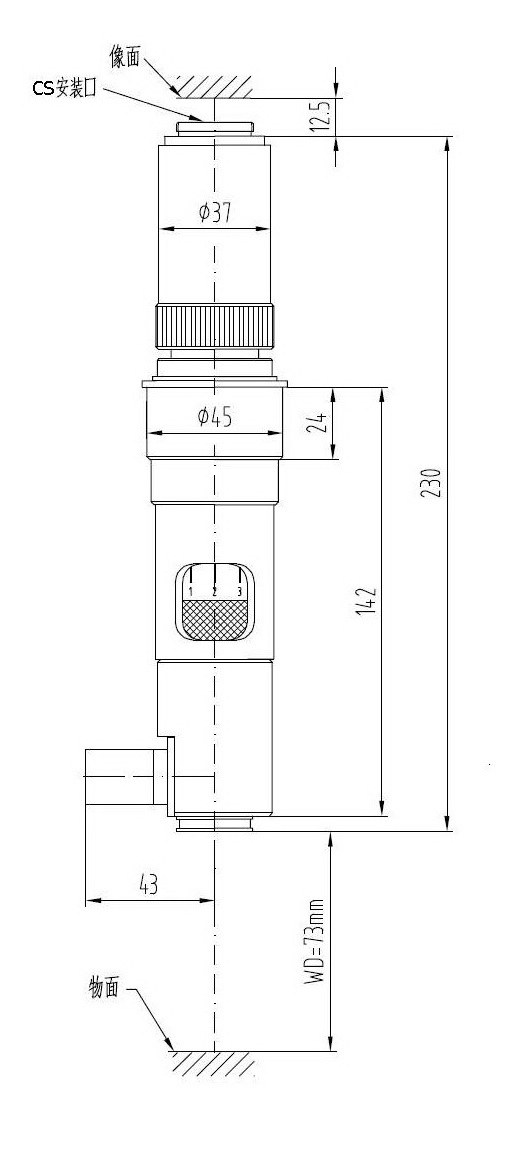

Main body and Holder matching dimension	Φ45mm
Mount	Standard CS-mount (distance between the bearing surface and the CCD plane is 12.5mm)

Items	CCD adapter
Items	0.5X	1X	1.5X
Optical Mag.	0.35X～2.3X	0.7X～4.6X	1.05X～6.9X
FOV(mm)	10.29X13.71～1.57X2.09	5.14X6.86～0.78X1.04	3.43X4.57～0.52X0.7
WD(mm)	73
Zoom body magnification range: 0.7X～4.6X

Mag.	NA	DOF	Resolution	TV Distortion	Install dimension：Φ45mm， Max compatible camera：1/2" CCD Screw mount：1 inch 32 button
0.7X	0.022	2.6mm	15.3μm	0.07%
2.0X	0.052	0.38mm	6.5μm	0.11%
4.6X	0.072	0.12mm	4.7μm	0.09%

	Auxiliary illuminators	MLC100A，MLC1000
	CCD adapters	DB-C0.5, DB-C1.0, DB-C1.5 1X CCD adapter with micrometer :CDM1.0

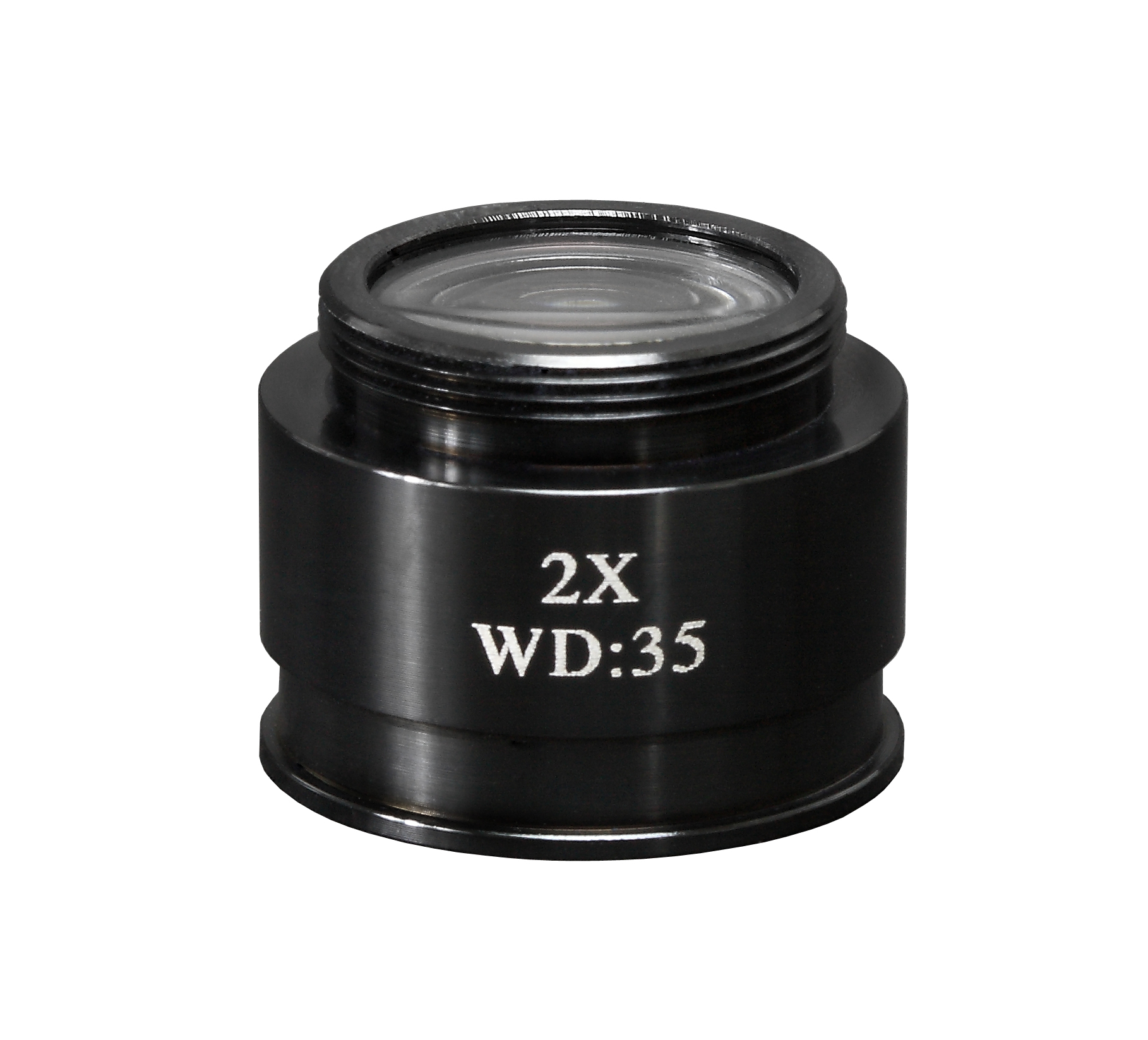

	Objectives	DB-W2.0 WD:31mm
	Mechanical stages	S10086, S7665 Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs specially be increased the screw holes.
	Stands	SD1-D ~ SD18-D
